Curved Stone Staircase with Dark Metal Stringers and Curved Glass Balustrade

Contemporary Staircase · Portland

Open-center curved flight with veined stone treads, dark metal stringers, and curved glass — finished in a Portland living well, first proven dry-fitted on the factory floor.

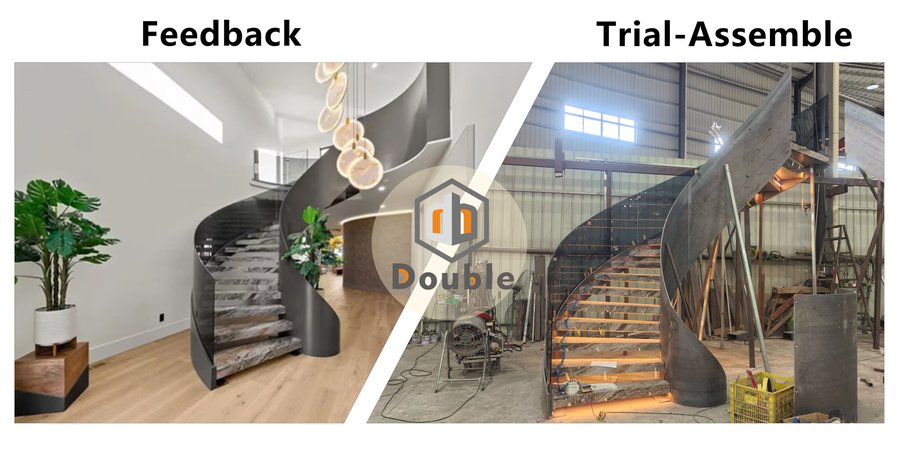

01 · Finished & Trial One stair, two chapters side by side: the lived Portland room on the left, the same arc standing in workshop air on the right — stone, dark metal, and glass already matched.

Most project photos only show the victory lap. This Portland case keeps the rehearsal in frame. On one side of the composite, a bright contemporary living well — pale timber floor, white walls, a tall plant at the base, disc pendants dropping through the void — holds a dark, continuous curved stair. On the other, the identical flight stands on concrete among fans, crates, and cables, under-tread lights already glowing. The story is not “pretty stair, mysterious factory.” It is the same object before and after the house claimed it.

That pairing matters for anyone specifying a custom open-center curve. The finished room answers the lifestyle question: does the stair open the well, or choke it? The trial floor answers the craft question: did stone, stringer, glass, and lighting meet as one system before export-ready crating? Between those two images sits the real work — drawing-first coordination, fabrication, and a dry-fit you can still correct.

The room asks for an open arc

The architecture here is not a narrow stair shaft. It is an open living volume that wants daylight and a clear sightline from the ground floor up through the well. A straight run would have sliced the space into leftover corners. A center-pole spiral would have planted a post in the middle of the view. An open-center curved flight — a helical path with no newel in the void — lets people climb while the eye still travels through glass and past the pendant cluster.

From the living floor, the stair reads as a dark ribbon turning through white air. The outer metal stringer carries both structure and a solid outer guard expression; the inner curved glass keeps the veined stone treads visible, so the flight never becomes a closed tube. Guests meet the curve the way they meet furniture: as something that organizes the room, not as a corridor they disappear into.

Show the living room alone and you sell atmosphere. Show the trial floor beside it and you sell the reason the atmosphere held together.

Proof on the trial floor

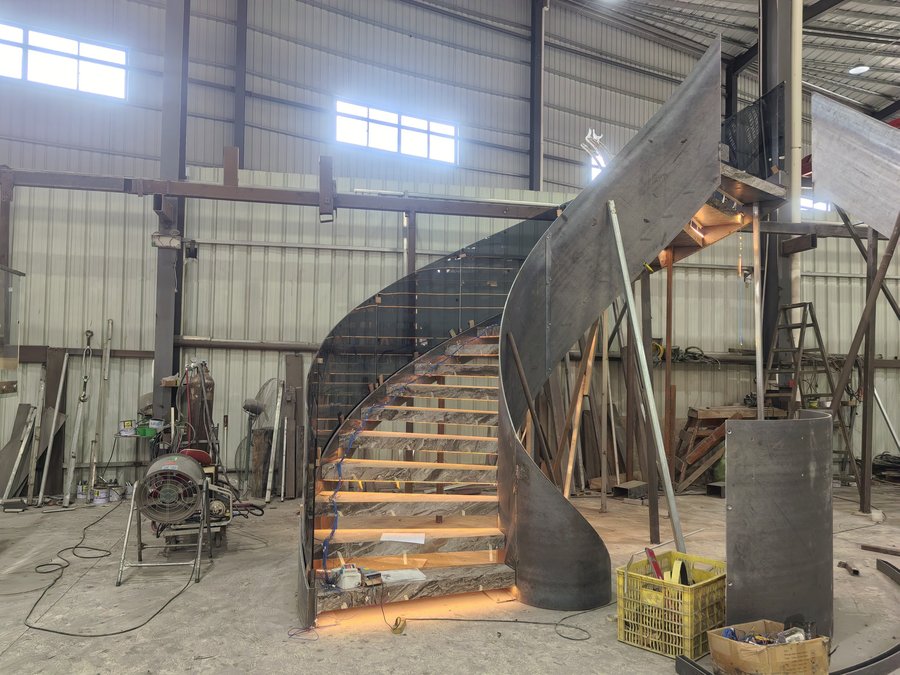

02 · Trial Assembly Workshop dry-fit: tall dark outer stringer, veined stone seats, inner curved glass, and under-tread lighting powered while cables still rest on the concrete.

On the trial floor the stair is honest about its weight. You see the full height of the dark outer stringer, the thickness of each stone tread, the way glass follows the inner arc, and the warm line under every nosing. Industrial clutter stays in the shot on purpose — it marks the stage where fit can still be judged without a finished ceiling in the way. Trial assembly before packing is not a marketing extra; it is where a curved system proves it is one kit of parts, not four separate purchases that meet for the first time on site.

Under-tread lighting is the detail most likely to be treated as “later.” Here it is powered during dry-fit. The glow shows whether the light washes the tread below cleanly, whether the stone edge and metal face stay aligned, and whether the wiring path belongs to the stair package. When the same flight appears in the Portland living well with furniture and plants, that quiet amber line is already a checked decision — not a hope taped under the nosing after install.

Drawing the dark ribbon and the glass

A curve this assertive has to be settled on paper while the well is still empty air. The shop drawing has to agree on the radius the opening can hold, the walking line people will actually use around the bend, and the glass segment breaks that let the balustrade track the inner stringer without fighting the steel. Those three agreements travel together into fabrication; if one drifts, the nose line, the hand line, or the light line under the tread will tell on you later.

For this stair the outer stringer is not a thin open edge. It is a tall, dark continuous band — structure and outer guard in one expression — so the drawing also locks how that ribbon reads against pale walls and timber. Inner glass panels are scheduled in segments so a residential arc stays buildable; quiet joints still read as one curve when the finished room is photographed. Accurate metal stair shop drawings exist for one reason: so the trial floor is a confirmation, not a rescue mission.

Scope stays clear after the dry-fit. The factory side ends at a coordinated, labeled shipment in export-ready crating. On-site fitting belongs to the project’s local contractor. The Portland photos document both chapters of that handoff — the proof stage and the lived room — without pretending the workshop installs the house.

Stone · metal · glass

Tread

Veined stone carries the footfall. In the finished well the boards look cool and quiet against light wood flooring; on the trial floor you see their mass clearly — how much stone the curved steel is asked to hold before any rug or sofa softens the scene. Grain softens the industrial dark of the stringer. Each tread has to land true so the under-tread light has a clean surface to wash, not a gap that leaks brightness sideways.

Stringer

Dark metal stringers form the spine of the arc. The outer face is the photograph from across the Portland living floor: a continuous charcoal band that turns with the stair and reads taller than a slim open stringer would. That height is intentional — it gives the climb a sheltered outer edge while still belonging to the stair object, not to a drywall return. Alignment has to survive trial assembly, packing, and local install; against white walls there is nowhere for a twist to hide.

Balustrade

Curved glass balustrade on the inner edge is the counterweight to that dark outer band. Glass keeps the well open to plants, pendants, and the stone tread profile. It is scheduled with the stringer on the same drawing — not ordered later as a generic railing pack — so segment joints follow the radius already locked for the steel. In daylight the glass almost disappears; at night the under-tread glow has a clear path along the climb.

After the crates leave

When the furniture is in and the plant is watered, the stair has to satisfy two audiences at once. People on the ground floor see a sculptural dark curve in a bright well. People using the treads feel whether the walking line stays generous through the bend and whether glass joints stay quiet under the hand. The composite image is useful here: the living side shows the social result; the trial side shows why that result was not improvised on site.

Everyday ownership is ordinary and worth naming. Glass in a bright volume needs cleaning. Stone nosings take the wear of daily traffic. Under-tread lighting needs the access path that was already reviewed while the flight stood on concrete. None of that is a defect — it is what an open, lit, stone-and-glass curve asks of a household. Local install stays with the project’s contractor; the factory’s job was the matched set that arrived labeled and crate-ready.

Planning a stair like this one

If you are considering a curved stone staircase for an open Portland-style living well, start with the void you want to keep, not with a finish sample. Ask whether the plan can host a walking line around an open center without a pole in the view. Decide early whether the outer stringer should read as a tall dark ribbon or as a lighter open edge — those two rooms feel completely different. Put curved glass and under-tread lighting on the same coordination list as the steel, and treat trial assembly as the moment you accept the set before it ships.

This project’s evidence is deliberately double: a finished open-center curve in veined stone, dark metal, and glass — and the factory dry-fit that made that finish believable. Between those two frames sit drawing-first coordination, trial assembly before packing, and export-ready crating. That is the sequence a curved stair of this kind usually needs if the living-room photograph is going to tell the truth.

Photos: finished stair and factory trial assembly, Portland residence. On-site fitting by the project’s local contractor.
