Paired Outdoor Metal Spiral Staircases with Horizontal Bar Railings

Contemporary Staircase · Outdoor Pair

Paired outdoor spiral staircases in black finished steel — metal grating treads, outer plate stringers, and horizontal bar railings — proven on the trial floor, finished under night landscape light.

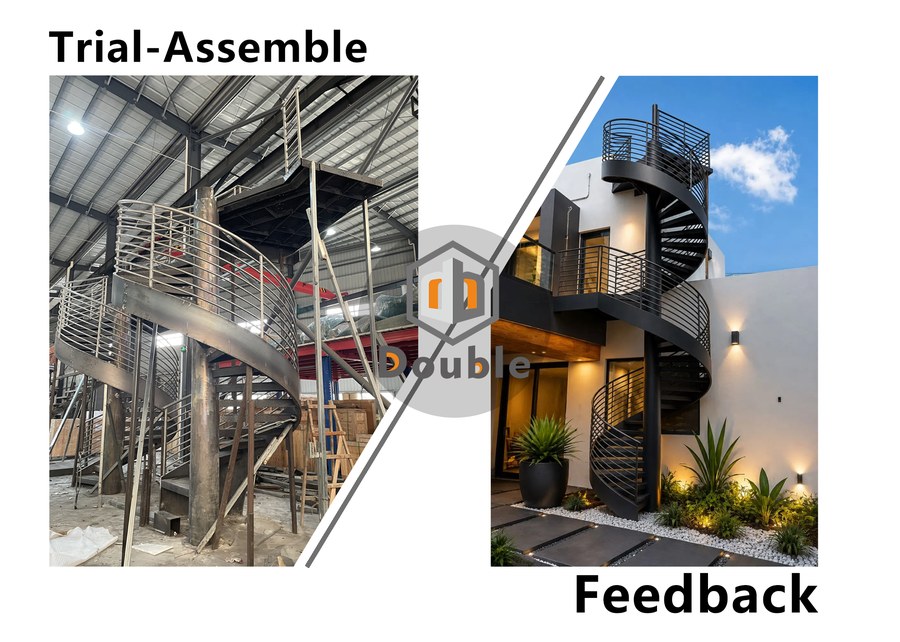

01 · Trial-Assemble & Feedback Before and after in one frame: raw steel dry-fit at left; the finished outdoor spiral with horizontal bar railings at right, under landscape light.

On this contemporary elevation, outdoor life does not stop at a single balcony door. The residence needs two outdoor climbs that sit in the same night view: one route toward the loft, and a second that continues from loft level up to the rooftop. From the patio gravel, those climbs are not two separate shopping trips. They are one quiet outdoor language that has to appear twice and still feel deliberate when landscape lights come on.

The answer is a paired set of outdoor spiral staircases — true center-pole metal spirals with metal grating treads, black finished steel outer plates, and horizontal bar railings. Compact enough to stay close to the facade. Custom enough to share finish, bar rhythm, and tread texture across both openings. Built as siblings, not as two kit products that happen to land on the same house.

Two outdoor routes. One grating-and-bar language. The night elevation should not have to explain why the stairs disagree.

Why two outdoor spirals share one language

Loft access and loft-to-rooftop access serve different hours of the day. Guests may use one climb more than the other. Even so, both stairs occupy the same outdoor rooms — the same patio gravel, the same warm wall wash, the same balcony edge where black railing continuity either holds or breaks. If bar spacing drifts, if tread texture changes, if the black finish does not match, the patio reads the mismatch immediately.

A long straight run would have cut a heavy diagonal across those outdoor rooms. An open-center helical stair — the kind that turns around an empty well with no center pole — would have asked a different footprint and a different structural story. A retail kit spiral can look finished in a catalog; it rarely survives as a matched outdoor pair under real landscape light. Here the brief favors two circular climbs that stay close to the facade: separate units, shared vocabulary — not a double-helix coiled in one void, and not one continuous multi-story coil sold as “two stairs.”

Call it helical only if the middle is empty. These climbs are not. Wedge metal treads radiate from a thick central column. A continuous outer plate draws the dark ribbon and seats the railing posts. Open risers keep the mass from reading as a solid tube. At night, landscape light catches that plate first; warm interior light presses through glass; black bars stay quiet against light cladding. The collage shows one finished climb clearly under that night wash. The project still locks two routes. The elevation has to carry finish logic for both — grate texture, outer-plate silhouette, horizontal bar rhythm, black continuity at the balcony — without inventing a second camera angle the folder does not hold.

Center pole, grating, and horizontal bars

Metal grating treads are the walking surface — open underfoot, open between rises. Outdoors, that open grate lets rain, leaves, and light debris pass through instead of pooling on a solid plate. Under night landscape light, the open grid still reads as a sure outdoor tread rather than a polished indoor plate. Keep the name at “metal grating” unless a closer look confirms welded bar grate versus perforated plate. Both live in the same outdoor family. A collage should not invent an OEM slip-rating, and a residential case should not paste industrial catalog numbers onto the facade.

Horizontal bar railings set the edge. Vertical posts and a slim top rail read denser than frameless glass, yet clearer than a picket cage under night wash. Compared with a curved-glass outdoor spiral — the language used on a sibling Michigan grating project — bars change the drawing work: spacing, post locations, and continuity past landings must agree before fabrication. That is the aesthetic choice of this pair. Industrial underfoot. Residential in the hand. Transparent enough for landscape light to rake the outer plate; solid enough that the rail stays quiet when you climb after dark.

Tread

Metal grating treads — open walking surface for outdoor drainage and see-through mass, matched across both outdoor spiral staircases.

Structure

Black finished steel — center pole plus outer plate stringer on each unit. The pole is what makes each climb a spiral rather than an open-center helical stair. Matte black stays quiet against light cladding and asks for ordinary outdoor cleaning over time — not a maintenance-free promise.

Balustrade

Horizontal bar railings — vertical posts and a continuous top rail, drawn as one railing language for loft access and loft-to-rooftop access alike.

Geometry locked before steel is cut

People walk the wider outer band of a center-pole spiral. Stair designers call that path the walkline — the place where usable tread depth is judged on the drawing, usually measured out from the narrow inner edge. It is geometry discipline for each opening and each wedge set, not a fabricated project dimension. Wedge treads also ask a more deliberate pace than a straight flight. That is ordinary spiral honesty for daily use, twice over when two openings must agree.

Drawing-first coordination locks the pair as one package before fabrication: each unit’s circular footprint and headroom at its own opening, plus a shared finish schedule and shared horizontal bar railing language. Those agreements travel into the workshop as labeled sheets — not as two unrelated purchases meeting for the first time in the rain. Miss the opening coordination and a top landing fights the balcony edge. Miss the bar schedule and the night facade shows two different minds about spacing.

From the trial floor to the night facade

The left half of the collage is the unglamorous middle that makes the night half believable. Posts, bars, outer plate, and center pole stand together under workshop light while temporary supports still share the bay. Rotation, landing interface, and railing climb are checked while correction is still cheap. Trial assembly before packing is how a custom outdoor pair earns facade trust — not a marketing caption pasted after the crates leave.

Export-ready crating follows. Anchoring, deck interfaces, and final fitting belong to the project’s local contractor. The collage documents both chapters of that handoff without claiming the workshop installs the house. On the right half, the same members wear a matte black finish against patio gravel and warm wall wash. Landscape uplights rake the outer plate. Warm interior light presses through glass walls. The stair meets a balcony edge and keeps climbing in the same black railing language — no sudden change of mind at the landing.

Living with a paired outdoor spiral

Once landscaping settles, the stairs have to work in weather as much as in photographs. Grating sheds water and light debris better than a solid tread; black metal still shows dust and pollen until it is washed. Horizontal bars need the same honest outdoor cleaning any dark rail asks for next to light cladding. None of that is a flaw. It is the cost of an open outdoor climb that photographs clean at night and stays practical when it rains.

What changes for the residence is simple to feel. Compact outdoor climbs stay close to the facade. Grating stays practical underfoot. Horizontal bars stay quiet in the hand. When both routes are eventually in view from the patio, they should read as one system — industrial underfoot, residential at the rail — loft access and rooftop access speaking the same outdoor sentence.

Notes for a similar outdoor pair

If you are planning two outdoor spirals on one elevation, begin by naming each route — loft, rooftop, deck, grade — before you fall in love with a finish sample. Decide early that both units are true center-pole spirals, not a mix of spiral and open-center helical vocabulary. Choose metal grating when outdoor drainage and see-through mass matter. Choose horizontal bar railings when you want an industrial rail that still photographs clean under landscape light, and when you want a different edge language from a curved-glass outdoor spiral. Treat the shared finish schedule and the trial assembly as part of the deliverable, not as afterthoughts.

This project follows that order: paired outdoor metal spiral staircases with metal grating treads, black steel continuity, and horizontal bar railings. Drawings coordinated the pair. The trial floor checked it. The night facade finished it. It photographs as one elevation — and walks as two outdoor climbs that refuse to argue with each other.

Photo: trial assembly and installed outdoor spiral staircase feedback collage. On-site fitting by the project’s local contractor.
